2-DIE CYLINDRICAL

THREAD ROLLING

MACHINES

Features:

  • In-feed and thru-feed capability
  • Quick setup features
  • Work support tooling on a fixed centerline
  • Hydraulically actuated left-hand head
  • Direct drive motor/gearbox assembly
  • AC inverter variable speed spindle drive
  • Equipped with programmable controller including
    • Expandable input and output
    • Programmable load and dwell time

B Series Specifications:

Specifications B105 B205 B305 B805
Thread                ...In-feed

            Diameters            ...Thru-feed

up to 1-1/2"
up to 1"
up to 2-1/2"
up to 2"
up to 3"
up to 2-1/2"
up to 6"
up to 4"
Thread
Lengths
up to 3"
up to 20'
up to 4-1/8"
up to 20'
up to 6"
up to 20'
up to 10"
up to 20'
Spindle Diameter 1-1/2" 2-1/8" 3" 4-3/4"
Dies 5-1/4"
3"
7"
4-1/8"
8"
6"
10"
10"
Die Speeds (RPM) 50 to 200 50 to 180 30 to 180 25 to 100
Spindle Drive 5 hp 20 hp 30 hp 80 hp
Max. Radial Die Load (in tons) 10 20 30 80
Loading Height 42 42 42 42
Floor Space (inches / L x W) 68 x 68 96 x 108 104 x 85 72 x 84
Net Weight (pounds) 3000 7000 11,000 15,000

Metric B105 B205 B305 B805
Thread
Diameters
up to 38 mm
up to 25 mm
up to 63 mm
up to 50 mm
up to 76 mm
up to 63 mm
up to 152 mm
up to 105mm
Thread
Lengths
up to 76 mm
up to 6 meters
up to 104 mm
up to 6 meters
up to 152 mm
up to 6 meters
up to 254 mm
up to 6 meters
Spindle Diameter 38 mm 53.9mm 76.2 mm 120.6mm
Dies 133.3 mm
76 mm
177.8 mm
104.7 mm
203.2 mm
152.4 mm
254 mm
254 mm
Die Speeds (RPM) 50 to 200 50 to 180 30 to 180 25 to 100
Spindle Drive 3.7 kW 15 kW 22.2 kW 60 kW
Max. Radial Die Load 89 kN 178 kN 267 kN 712 kN
Loading Height 1066 mm 1066 mm 1066 mm 1066 mm
Floor Space (mm / L x W) 1727 x 1727 2438 x 2743 2641 x 2159 1828 x 2133
Net Weight 1360 kg 3175 kg 4990 kg 6800 kg
  All maximum values may not be obtained simultaneously.

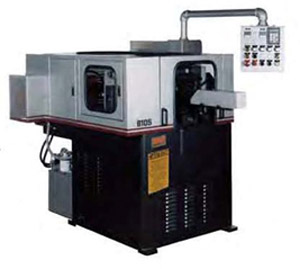

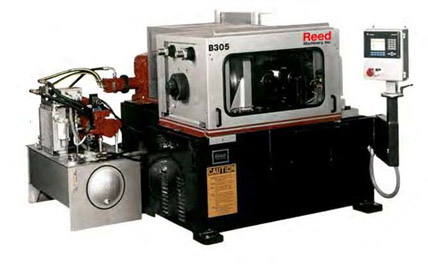

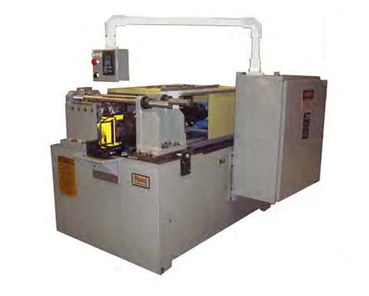

2-Die Cylindrical Machine Photos

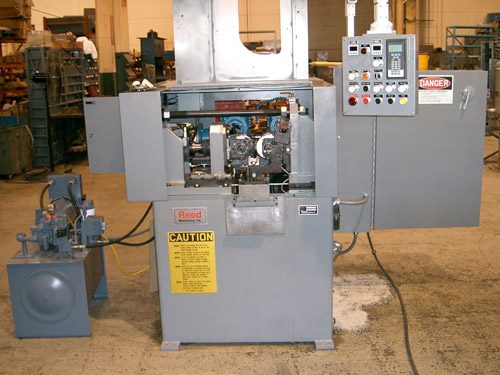

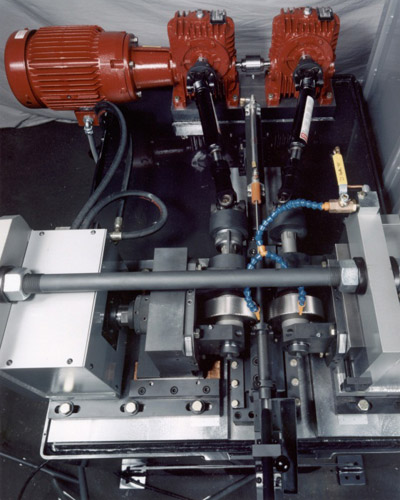

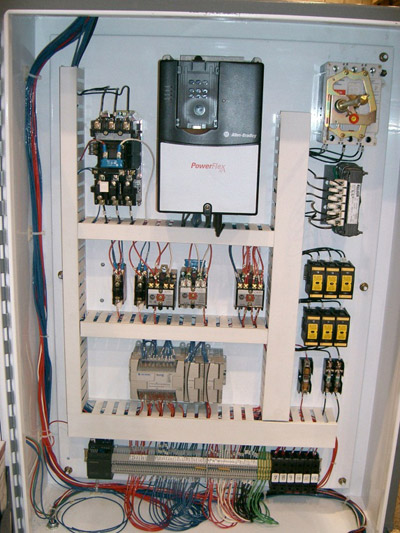

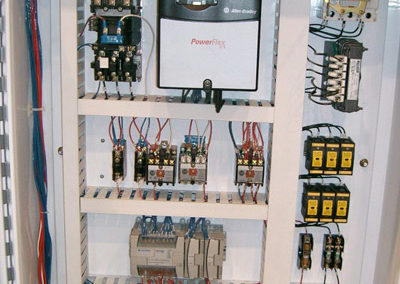

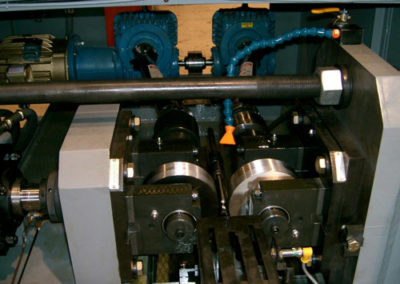

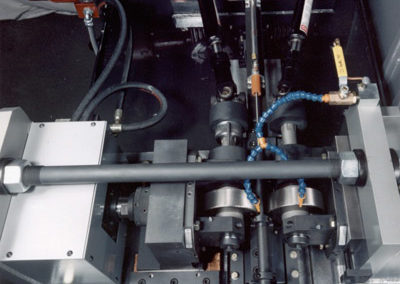

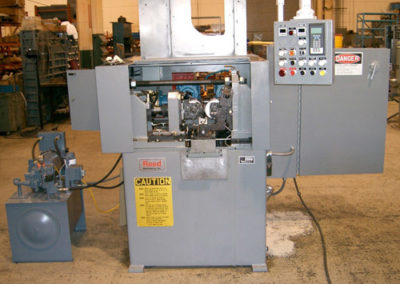

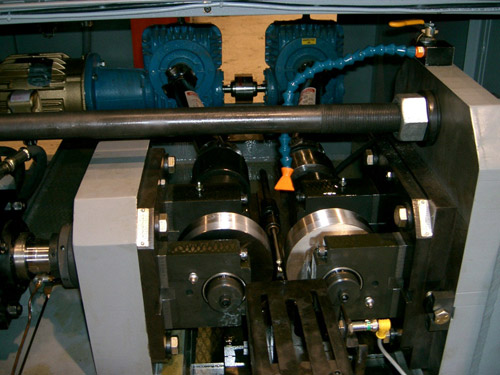

B105 Series Photos

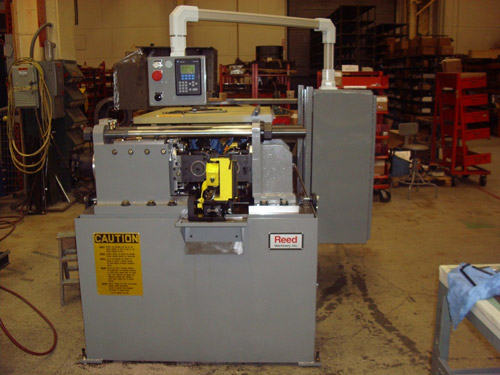

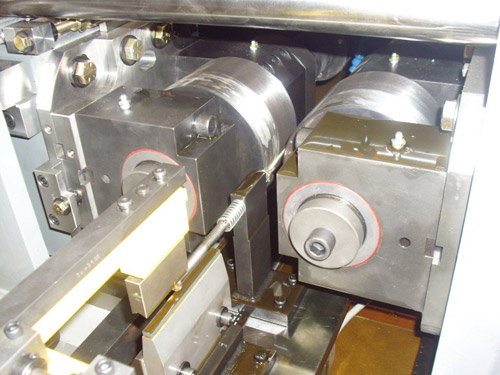

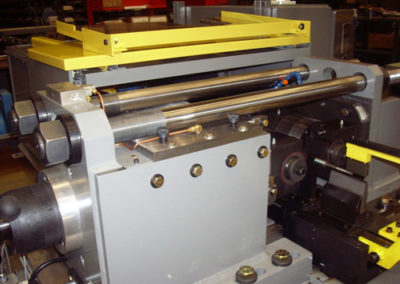

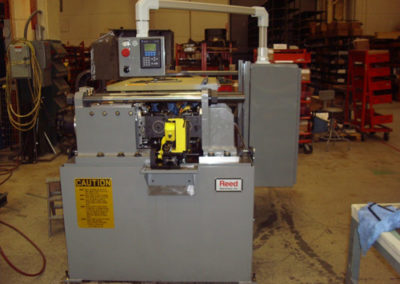

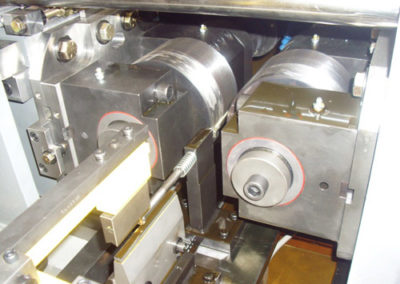

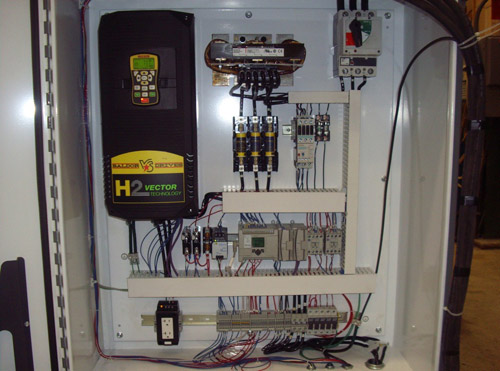

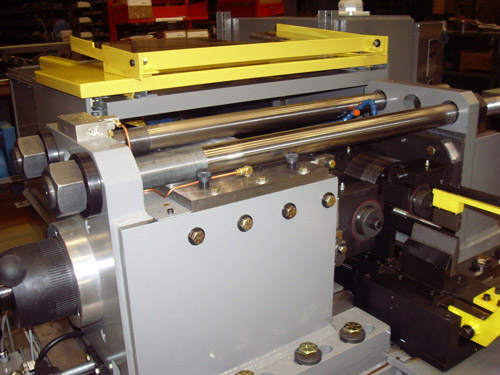

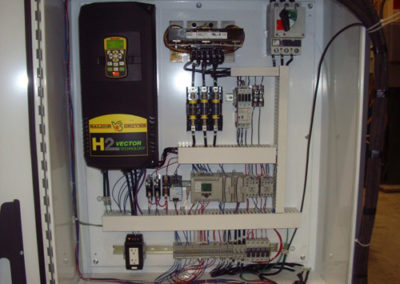

B205 Series Photos

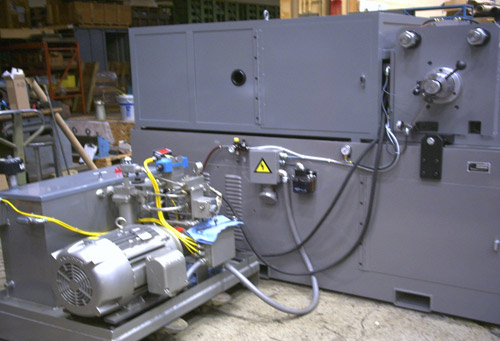

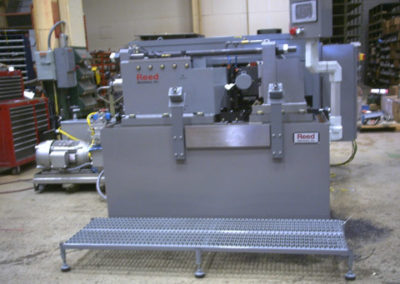

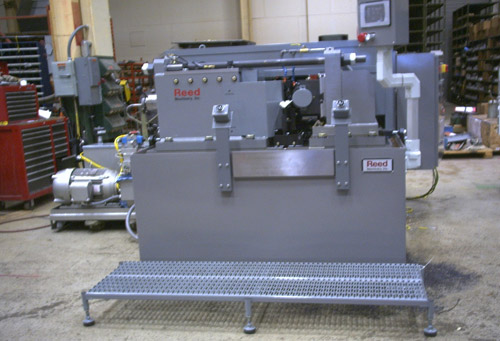

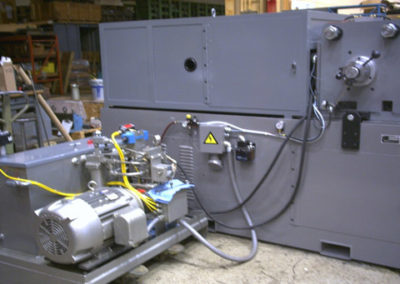

B305 Series Photos
