PLANETARY THREAD ROLLING MACHINES

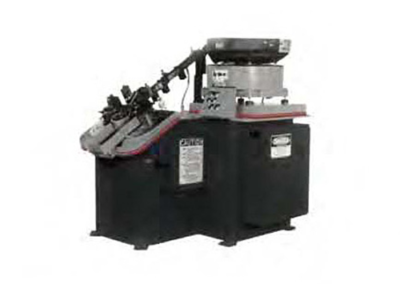

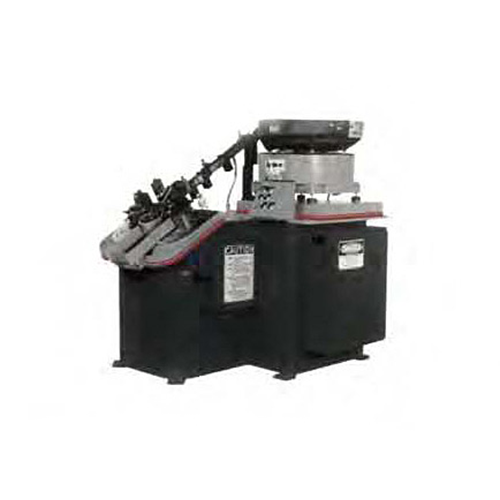

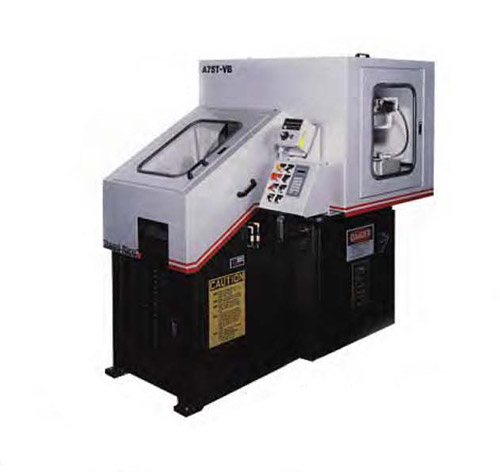

Model A75N Planetary Nail Threader

Available with…
Preceision PLUS

with Direct Drive
Shown with optional sound enclosure/guard.

 Features:

Model A75N

  • For rolling nails up to 2000 parts per minutes
  • Screw shank to .138″(3.5mm) wire diameter
  • Ring shank to .200″ (5mm) wire diameter

Model A75T

  • For rolling screws and bolts up to 1200 parts per minute
  • 3/8″(9.5mm) diameter capacity

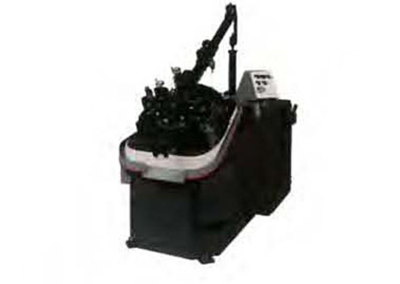

Other Planetary Models



Planetary Specifications:

Specifications A75N
for Nails
A75T 150N-VB
for Nails
150T-VB 200A 300A-VB
with
Mandrel
Head
300B 400A-EH
Thread
Diameters
.050 to .138"
screw shank
.050 to .200"
ring shank
.050 to 3/8"
---
.050 to 375"
---
.050 to 1/2"
---
1/4 to 3/4"
---
5/16" to 3/4"
opt.1 1/4"
5/16" to 3/4"
opt.1 1/4"
1/2 to
1 1/4"
---
Thread
Lenght
up to 3"
---
up to 3 1/8"
---
up to 3"
---
up to 3 1/4"
---
up to 3"
---
std. 1 1/2"
opt. 2"
std. 1 1/2"
opt. 2"
up to 3 7/8"
---
Dies 7" rotary
3"
7" rotary
3.15"
9" rotary
3 1/4"
9" rotary
3 1/4"
12" rotary
3 1/4"
12" rotary
2"
12" rotary
2"
15" rotary
4 1/2"
Die Speeds (RPM) 75 to 200 75 to 120 75 to 150 75 to 120 50 35 35 30
Cam Speeds
(pieces/minute)
up tp 2000 up to 1200 up to 1500 up to 1200 up to 500 up to 300 up to 300 up to 200
Power 15hp 20hp 20hp 20hp 20hp 10hp 10hp 45hp
Loading Height 64 64 64 64 68 68 68 40
Floor Space
(inches / L x W)
63 x 53 63 x 53 63 x 53 63 x 53 67 x 36 78 x 60 78 x 60 144 x 40
Net Weight (pounds) 3000 3000 3000 3000 6000 4500 4300 12,000

Metric A75N
for Nails
A75T 150N-VB
for Nails
150T-VB 200A 300A-VB
with
Mandrel
Head
300B 400A-EH
Thread
Diameters
1.27 to 3.5 nm
screw shank
1.21 t0 5 mm
ring shank
1.27 to
9.5mm
---
1.27 to
9.5mm
---
1.27 to
12.7mm
---
6.3 to
19mm
---
7.9 to
19mm
opt.
31.7mm
7.9 to
19mm
opt.
31.7mm
12.7 to
31.7mm
---
Thread
Lenght
up to
76 mm
---
up to
80mm
---
up to
76.2 mm
---
up to
82.5mm
---
up to
76.2 mm
---
std.
38.1mm
opt.
50.8mm
std.
38.1mm
opt.
50.8mm
up to
980.4mm
---
Dies 178mm
rotary
76 mm
178mm
rotary
80mm
228.6mm
rotary
82.5mm
228.6mm
rotary
82.5mm
304.8mm
rotary
82.5mm
304.8mm
rotary
50.8mm
304.8mm
rotary
50.8mm
381mm
rotary
114.3mm
Die Speeds (RPM) 75 to 200 75 to 120 75 to 150 75 to 120 50 35 35 30
Cam Speeds
(pieces/minute)
up to 2000 up to 1200 up to 1500 up to 1200 up to 500 up to 300 up to 300 up to 200
Power 11.3kW 11.3kW 15 kW 15 kW 15 kW 7.4kW 7.41kW 34.4kW
Loading Height 1624mm 1624mm 1624mm 1624mm 1726mm 1726mm 1726mm 1015mm
Floor Space
(mm / L x W)
1600 x 1346 1600 x 1346 1600 x 1346 1600 x 1346 1700 x 914 1981 x 1524 1981 x 1524 3657 x 1016
Net Weight (pounds) 1360kg 1360kg 1360kg 1360kg 2721kg 2040kg 1950kg 5442kg
Specifications 400AS
Valve
Straightener
75AH 150AH 200AH 150CHD 200CHD
Thread
Diameters
stem dia.
to 3/4"
---
.080 to 3/8"
---
1/8 to 1/2"
---
5/16 to 3/4"
---
1/8 to 1/2"
---
5/16" to 3/4"
---
Thread
Lenght
up to
12 1/2"
---
up to 3"
---
up to 3"
---
up to 3"
---
up to 3"
---
up to 3"
---
Dies 15" rotary
---
7" rotary
3 1/4"
9" rotary
3 1/4"
12" rotary
3 1/4"
9" rotary
3 1/4"
12" rotary
3 1/4"
Die Speeds (RPM) 30 75 to 120 75 to 120 75 to 120 up to 70 up to 70
Cam Speeds
(pieces/minute)
60 to 140 up to 400 up to 350 up to 210 up to 350 up to 210
Power 25hp 15hp 15hp 20hp 20hp 50hp
Loading Height 40 50 50 50 50 50
Floor Space
(inches / L x W)
120 x 90 49 x 32 49 x 32 72 x 49 116 x 60 128 x 70
Net Weight (pounds) 12,000 2500 3500 4500 5000 7000

Metric 400AS
Valve
Straightener
75AH 150AH 200AH 150CHD 200CHD
Thread
Diameters
stem dia.
to 19mm
---
2 to 9.5mm
---
3.1 to
12.7mm

---
7.9 to
19mm

---
3.1 to
12.7mm

---
7.9 to
19mm

---
Thread
Lenght
up to
317.5mm
---
up to
76.2 mm
---
up to
76.2 mm
---
up to
76.2 mm
---
up to
76.2 mm
---
up to
76.2 mm
---
Dies 381mm
rotary
---
177.8 mm
rotary
82.5mm
228.6mm
rotary
82.5mm
304.8mm
rotary
82.5mm
228.6mm
rotary
82.5mm
304.8mm
rotary
82.5mm
Die Speeds (RPM) 30 75 to 120 75 to 120 75 to 120 up to 70 up to 70
Cam Speeds
(pieces/minute)
60 to 140 up to 400 up to 350 up to 210 up to 350 up to 210
Power 19kW 11.3kW 11.3kW 15 kW 15 kW 38kW
Loading Height 1015mm 1269mm 1269mm 1269mm 1269mm 1269mm
Floor Space
(mm / L x W)
3048 x 2286 1244 x 812 1244 x 812 1828 x 1244 2946 x 1524 3251 x 1778
Net Weight (pounds) 5442kg 1133kg 1587kg 2040kg 2267kg 3174kg

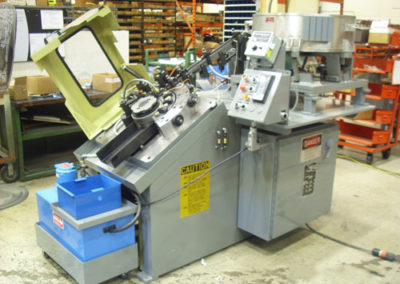

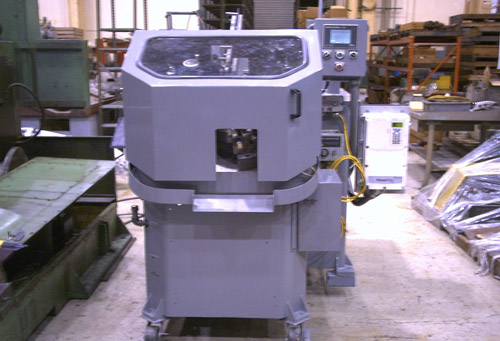

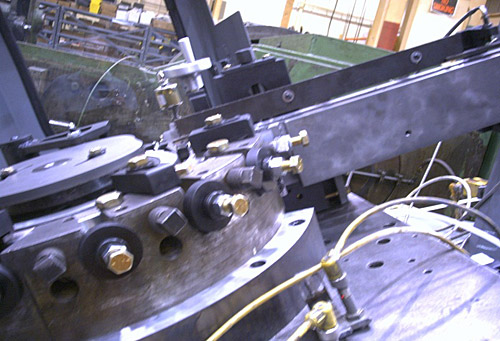

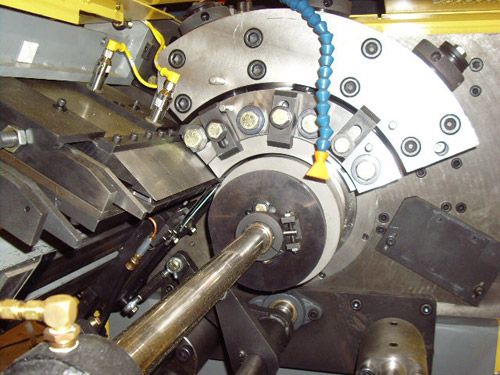

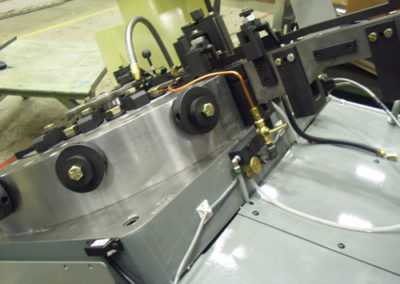

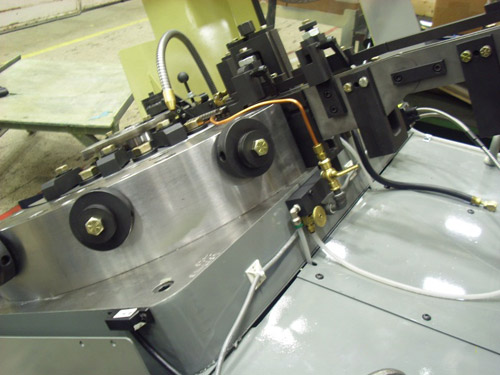

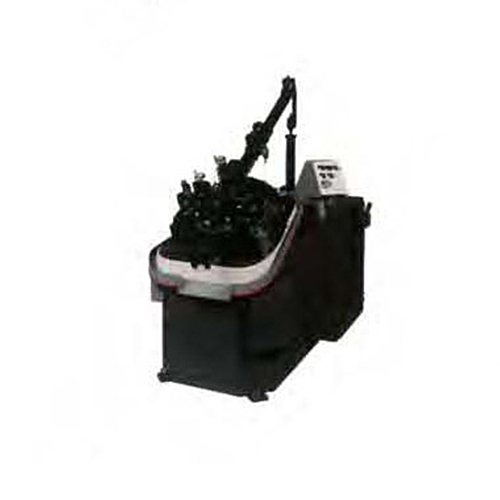

Planetary Machine Photos

A75 Series Photos

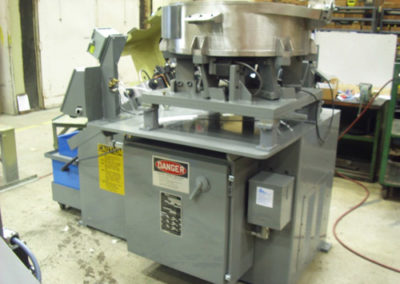

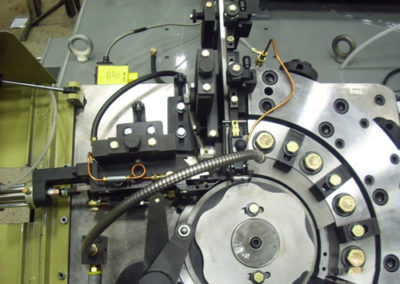

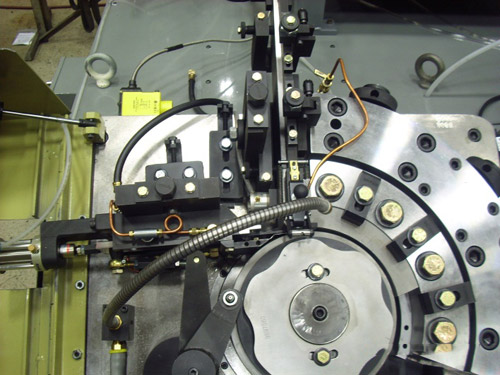

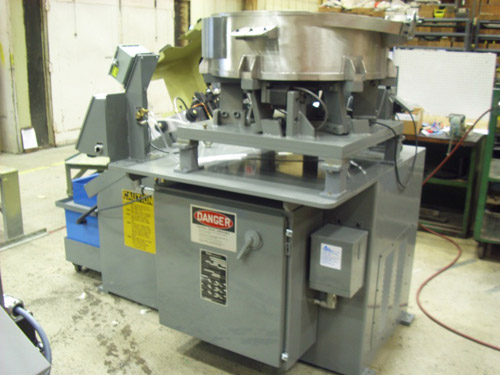

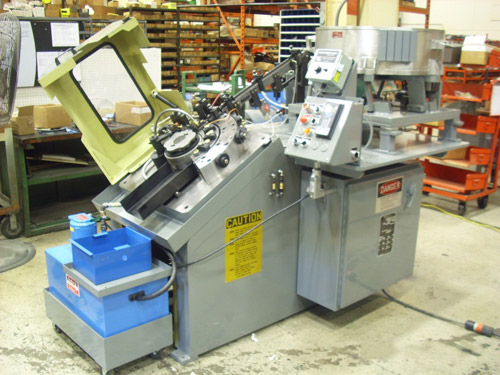

150 Series Photos

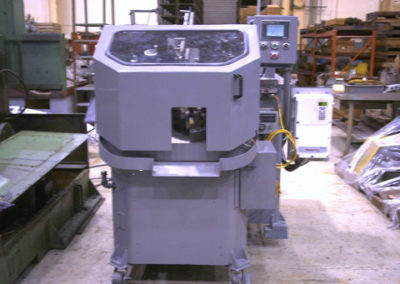

200 Series Photos

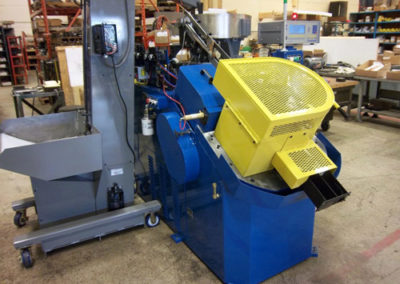

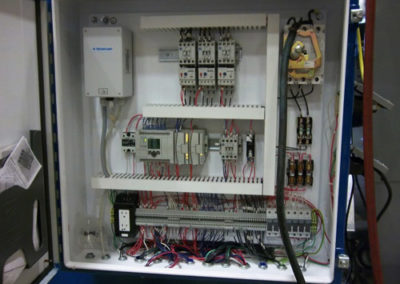

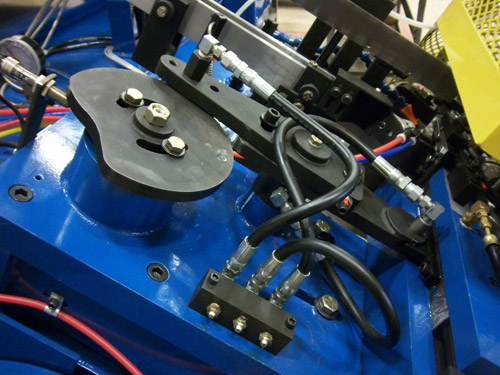

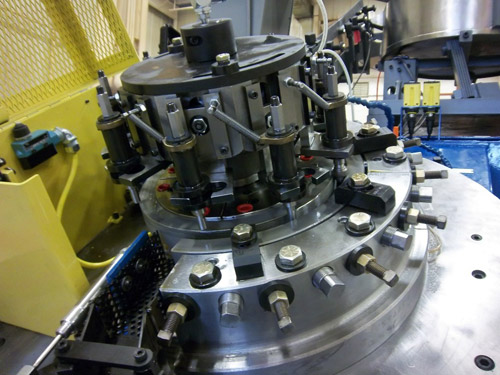

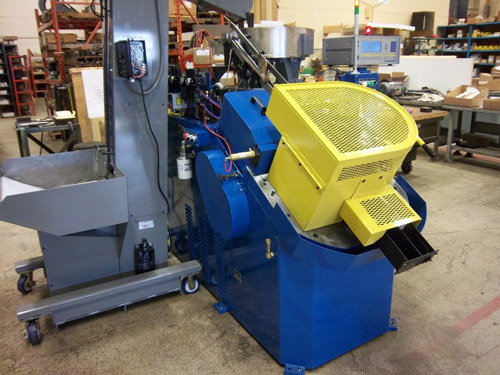

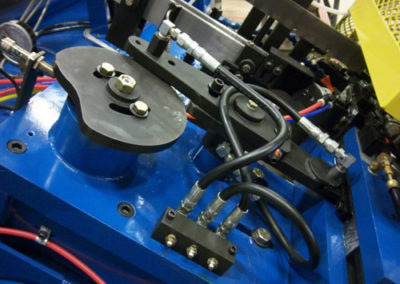

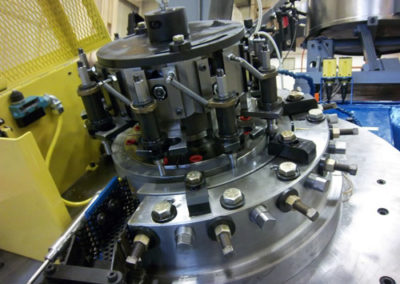

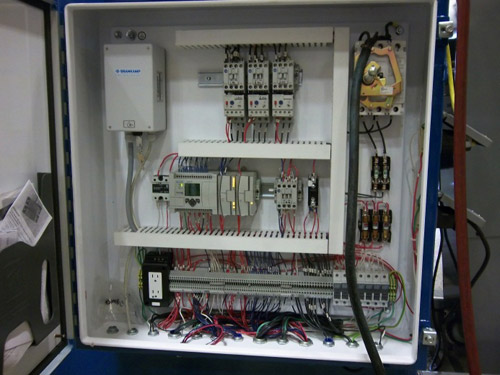

300 Series Photos

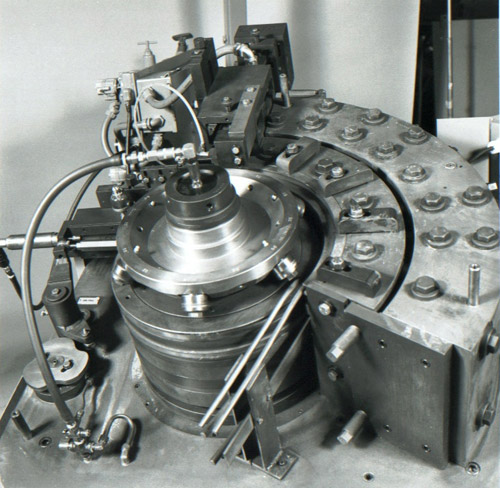

400 Series Photos

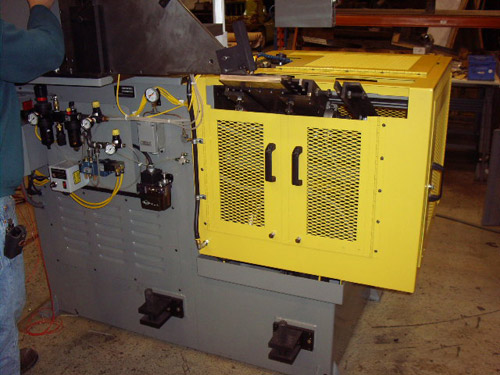

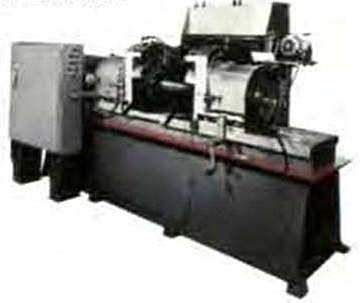

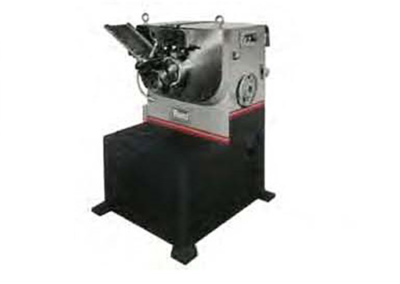

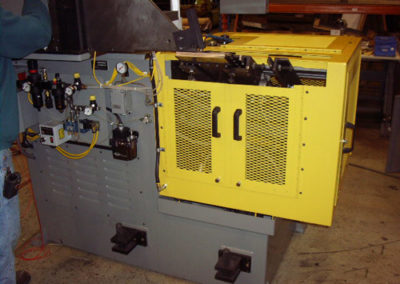

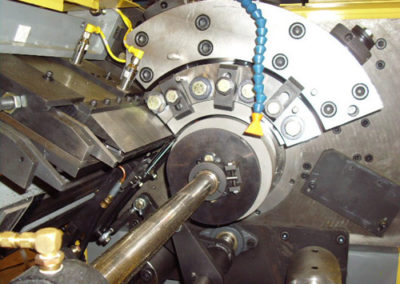

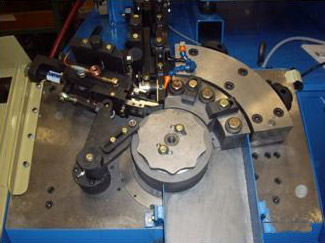

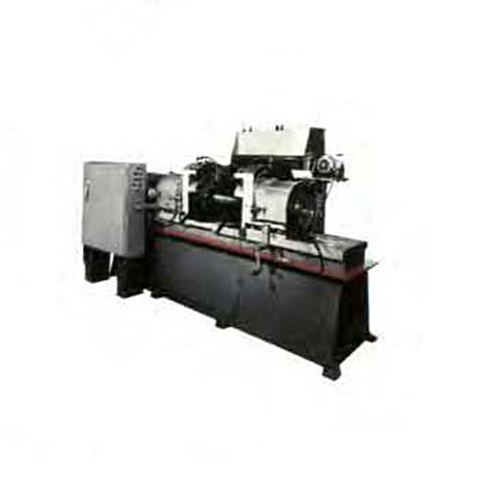

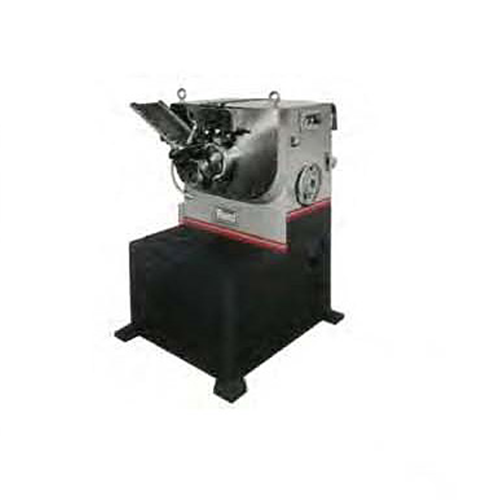

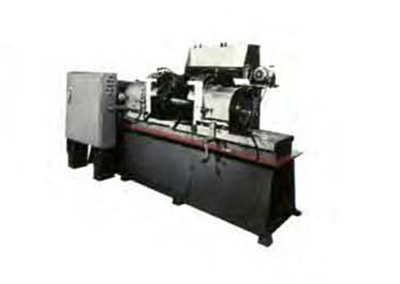

75AH & 200 CHD Series Photos
